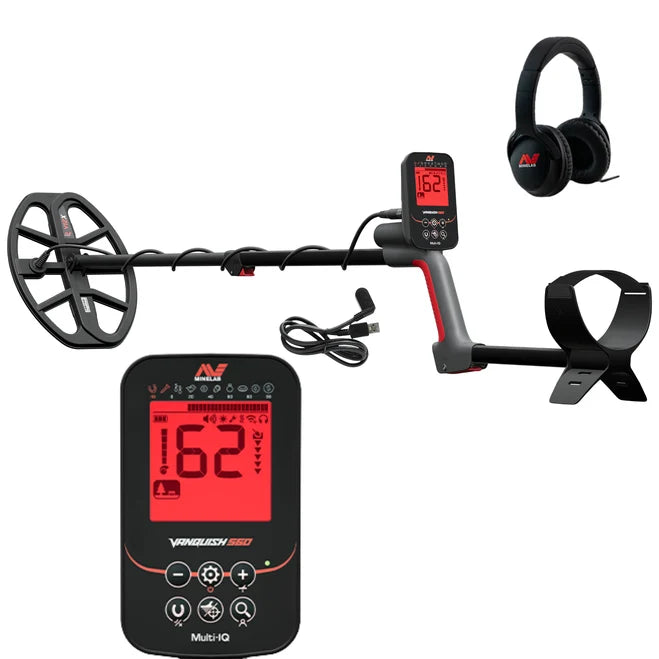

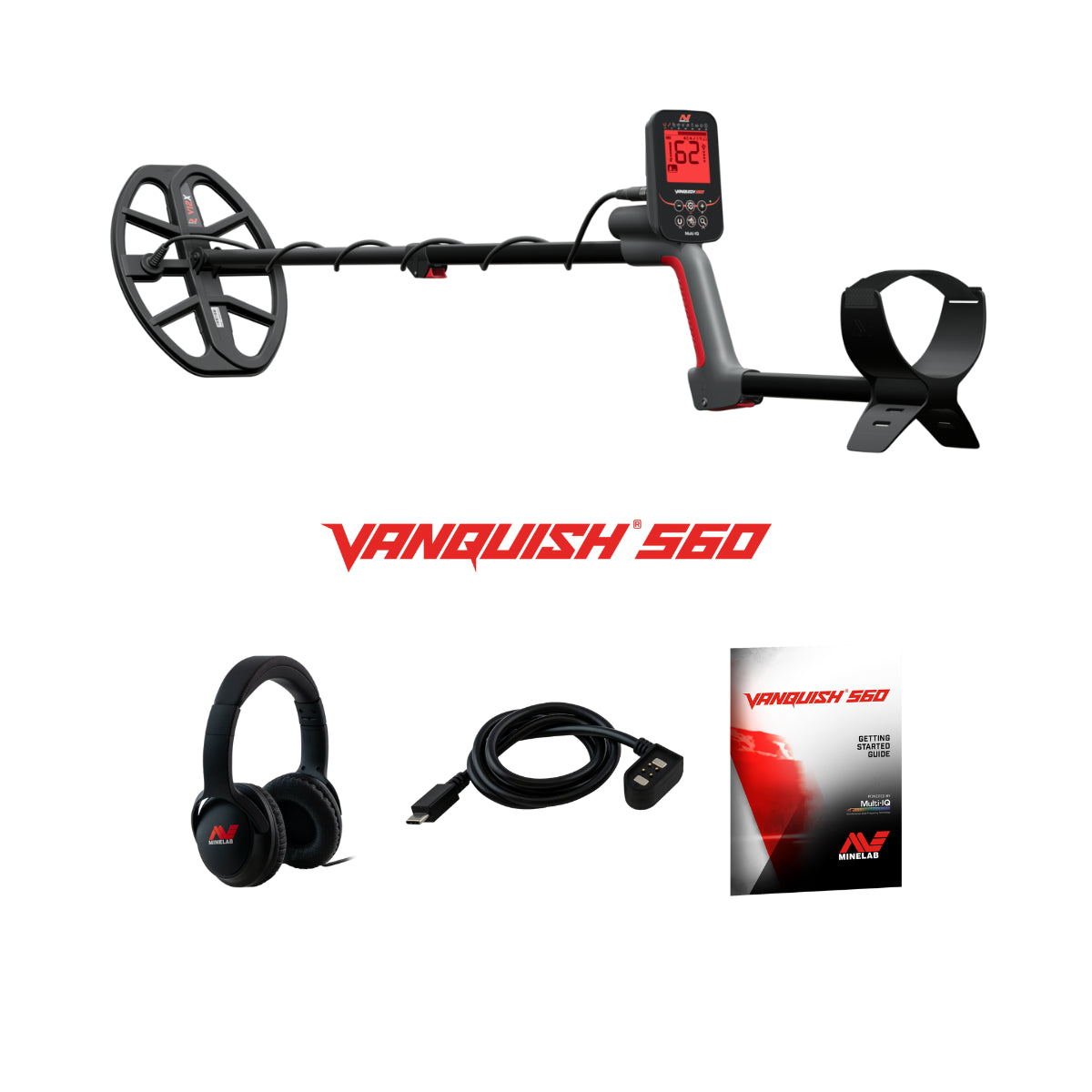

Minelab - VANQUISH 560 - Metal Detector:

The Minelab - VANQUISH 560 is the flagship of the new VANQUISH lineup, combining Minelab’s proven Multi-IQ simultaneous multi-frequency technology with a fully waterproof design, advanced target identification, adjustable Iron Bias, wireless audio capability, and the versatile V12X 12" x 9" Double-D search coil.

Built for coins, jewelry, relics, beaches, fields, and underwater detecting, the VANQUISH 560 delivers advanced performance while maintaining the simple, intuitive operation the VANQUISH series is known for.

Fully Waterproof

With an IP68 waterproof rating, the VANQUISH 560 is fully submersible to 16 ft (5 m). Take it from parks and fields directly into lakes, rivers, beaches, and shallow water without needing a separate detector.

Multi-IQ Technology

Minelab's proven Multi-IQ technology utilizes multiple frequencies simultaneously, providing dependable target identification and performance across varying ground conditions.

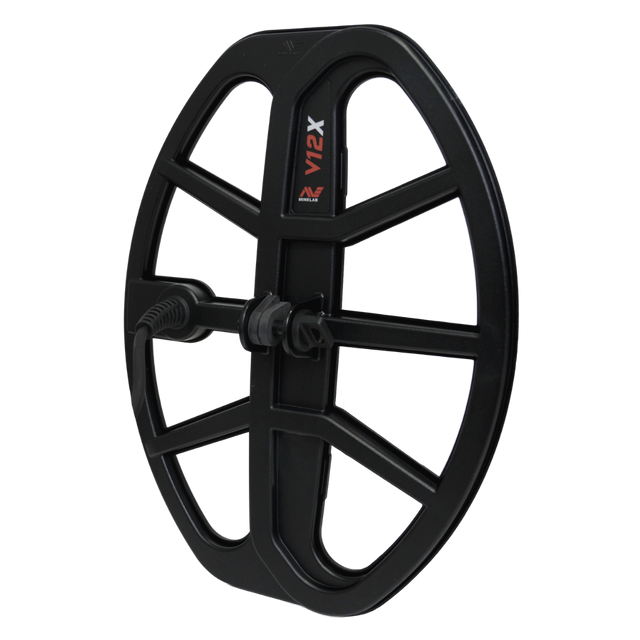

V12X 12" x 9" Double-D Search Coil

The VANQUISH 560 comes standard with Minelab's V12X 12" x 9" Double-D elliptical search coil.

The larger elliptical design provides an excellent combination of ground coverage, depth, and target sensitivity, making it a versatile all-around coil for parks, fields, beaches, and open ground.

V12X Coil Specs

• 12" x 9" elliptical design

• Double-D coil configuration

• Fully waterproof

• Excellent ground coverage

• Designed for depth and target sensitivity

• Includes protective skidplate

• Compatible with the VANQUISH 60 Series

Key Features

• Multi-IQ Simultaneous Multi-Frequency technology

• IP68 – fully waterproof to 16 ft (5 m)

• 119 Target IDs – Ferrous -19 to 0 / Non-Ferrous 1 to 99

• 30 discrimination segments

• Park, Field, Beach & User Profile search modes

• Custom User Search Profile

• Pinpoint mode

• 10 sensitivity levels

• 4 Iron Bias levels

• Automatic Noise Cancel

• Automatic & Tracking Ground Balance

• 5 target tones

• 5-level depth indicator

• Ferrous Volume – 10 levels

• Bluetooth LE Audio capability

• Built-in speaker

• 3.5 mm wired headphone connection

• Handgrip vibration

• Backlit LCD display

• Backlit keypad

• Built-in flashlight

• Internal rechargeable lithium-ion battery

• Up to 10 hours of runtime

• V12X 12" x 9" Double-D elliptical coil

• Lightweight, collapsible design

• 3-year control box and coil warranty

Advanced Performance Made Easy

The VANQUISH 560 gives detectorists considerably more control while maintaining the straightforward operation of the VANQUISH platform. With 30 discrimination segments, adjustable Iron Bias, 10 sensitivity levels, Multi-IQ technology, and a large V12X coil, you have the tools to better separate desirable targets from unwanted iron and trash.

Whether you're searching an old park for silver coins, hunting relics in a field, or working the shoreline for lost jewelry, the Minelab - VANQUISH 560 provides the technology and versatility to hunt confidently across land and water.

Multi-IQ performance, full waterproofing, advanced controls, and the versatile V12X coil—the VANQUISH 560 is built to hunt almost anywhere.
